  • all-round edge protection
  • self-adhesive closure and tear strip


1
2
3
4
  • variable height using creases
  • the patented stabilisers keep the side flaps upright at a 90° angle
  • all-round edge protection
  • self-adhesive closure and tear strip
Show 3 pictures

1
2
Show 3 pictures

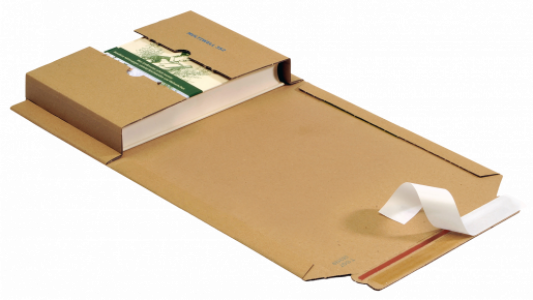

MULTIWELL 3 series

the right solution for any format

General information:

  • shipment packaging with variable height
  • self-adhesive closure and tear strip
  • all-round edge protection
  • strong testliner quality
  • handling advantage through patented stabilisers


Technical product information:

Item no. Max. usable size in mm External dimensions in mm Bundle / Pal. Pce. gr / Pal. kg Pallet size in cm overbuilt Quality
MW351E 147 x 126 x 10-40 192 x 130 x 18-48 25 / 7200 37 / 283 123 x 83 x 153 yes 1.02-E-20
MW352E 218 x 155 x 10-50 262 x 159 x 18-58 25 / 4200 60 / 273 120 x 80 x 180 no 1.02-E-20
MW354E 245 x 165 x 20-70 290 x 169 x 28-78 25 / 4200 73 / 325 120 x 82 x 176 yes 1.02-E-20
MW356E 270 x 185 x 20-60 315 x 189 x 28-68 25 / 2800 82 / 249 120 x 80 x 176 no 1.02-E-20
MW358E 302 x 215 x 20-75 347 x 219 x 28-83 25 / 2800 104 / 312 129 x 80 x 176 yes 1.02-E-20
MW352 217 x 155 x 10-50 263 x 161 x 22-62 25 / 2400 67 / 180 120 x 80 x 180 no 1.02-B-20
MW354 245 x 165 x 20-70 291 x 171 x 32-82 25 / 2400 81 / 215 120 x 82 x 175 yes 1.02-B-20
MW356 270 x 185 x 20-60 316 x 191 x 32-72 25 / 1600 93 / 168 120 x 80 x 175 no 1.02-B-20
MW358 302 x 215 x 20-75 348 x 221 x 32-87 25 / 1600 116 / 206 128 x 80 x 175 yes 1.02-B-20
MW362 325 x 250 x 20-75 371 x 256 x 32-87 25 / 1200 127 / 172 120 x 80 x 162 no 1.02-B-20
MW364 330 x 270 x 20-75 376 x 276 x 32-87 25 / 1200 151 / 201 120 x 80 x 160 no 1.02-B-20
MW367 370 x 290 x 20-75 416 x 296 x 32-87 25 / 1200 173 / 228 121 x 83 x 175 yes 1.02-B-20
MW368 455 x 320 x 20-55 501 x 326 x 32-67 25 / 800 201 / 181 120 x 82 x 175 yes 1.02-B-20
We reserve the right to make technical changes in case of product improvements.
