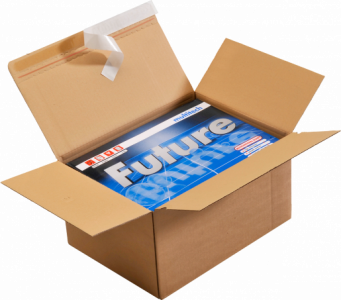

PACKFIX

Lightning quick and much more besides

General information:

  • robust shipping packaging with automatic base
  • top overlap bottom completely
  • with self-adhesive closure and tear strip
  • with set height, PF35* and PF40* with variable height
  • set up in moments thanks to the automatic base
  • theft protection thanks to the completely overlapping bottom


Technical product information:

Item no. Max. usable size in mm External dimensions in mm Bundle / Pal. Pce. gr / Pal. kg Pallet size in cm overbuilt Quality
PF10 157 x 127 x 70 166 x 136 x 88 20 / 3200 58 / 206 125 x 85 x 167 yes 1.31-B-21
PF10E 158 x 128 x 73 165 x 135 x 85 20 / 5760 51 / 313 120 x 84 x 175 yes 1.20-E-21
PF13 197 x 147 x 150 206 x 156 x 168 20 / 1600 99 / 178 120 x 80 x 175 no 1.31-B-21
PF15 197 x 197 x 100 206 x 206 x 118 20 / 1200 114 / 156 124 x 80 x 175 yes 1.31-B-21
PF20 210 x 150 x 109 219 x 159 x 127 20 / 1980 94 / 207 120 x 82 x 180 yes 1.31-B-21
PF20E 211 x 151 x 112 218 x 158 x 124 20 / 3240 83 / 288 120 x 82 x 180 yes 1.20-E-21
PF26 207 x 177 x 130 216 x 186 x 148 20 / 1560 117 / 202 129 x 81 x 165 yes 1.31-B-21
PF30 227 x 157 x 80 236 x 166 x 98 20 / 2000 93 / 206 127 x 82 x 175 yes 1.31-B-21
PF30E 228 x 158 x 83 235 x 165 x 95 20 / 3600 82 / 315 120 x 80 x 175 no 1.20-E-21
PF33 257 x 217 x 130 266 x 226 x 148 20 / 1100 162 / 198 120 x 99 x 170 yes 1.31-B-21
PF35 302 x 212 x 140-220 311 x 221 x 158-238 20 / 880 204 / 199 120 x 91 x 175 yes 1.31-B-21
PF37 287 x 187 x 180 296 x 196 x 198 20 / 800 168 / 154 120 x 80 x 175 no 1.31-B-21
PF40 307 x 227 x 81-160 316 x 236 x 99-178 20 / 800 191 / 173 120 x 87 x 175 yes 1.31-B-21
PF41 307 x 227 x 110 316 x 236 x 128 20 / 800 180 / 164 120 x 80 x 175 no 1.31-B-21
PF42 307 x 227 x 160 316 x 236 x 178 20 / 800 202 / 182 120 x 81 x 175 yes 1.31-B-21
PF50 342 x 253 x 130 351 x 262 x 148 20 / 800 222 / 198 121 x 80 x 175 yes 1.31-B-21
PF55 387 x 287 x 180 396 x 296 x 198 20 / 400 304 / 142 120 x 80 x 175 no 1.31-B-21
PF57 387 x 287 x 280 396 x 296 x 298 20 / 400 360 / 164 120 x 80 x 175 no 1.31-B-21
PF60 397 x 257 x 250 406 x 266 x 268 20 / 440 317 / 160 120 x 80 x 180 no 1.31-B-21
PF70 427 x 307 x 200 436 x 316 x 218 20 / 400 359 / 163 120 x 80 x 175 no 1.31-B-21
We reserve the right to make technical changes in case of product improvements.
