  • self-adhesive closure and tear strip
  • quick to open using the tear strip; tear strip for opening after second shipment
  • strong edge protection
  • integrated buffer for added protection
  • sealed bag to improve safety of content

Show 3 pictures

Show 3 pictures

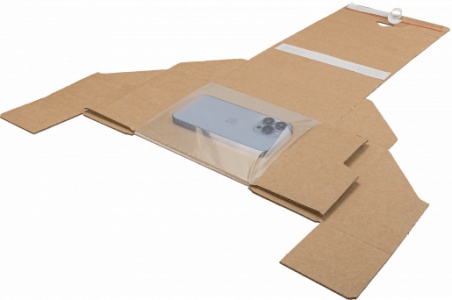

QUICKSNAP

the right solution for many formats

General information:

  • corrugated cardboard packaging with adhesive 40 micron LDPE film to secure your goods retention
  • self-adhesive closure and tear strip
  • anti-theft security seal
  • all-round edge protection
  • strong kraftliner quality
  • handling advantage through patented stabilisers
  • suitable for particularly sensitive products


Technical product information:

Item no. Max. usable size in mm External dimensions in mm Bundle / Pal. Pce. gr / Pal. kg Pallet size in cm overbuilt Quality
QS25 200 x 80 x 25 253 x 131 x 49 25 / 1860 25 / 1725 120 x 87 x 170 yes 1.40-B-27
QS50 126 x 94 x 64 154 x 156 x 88 25 / 1860 99 / 204 120 x 80 x 176 no 1.40-B-27
QS70 156 x 104 x 54 184 x 166 x 78 20 / 1240 110 / 156 120 x 80 x 176 yes 1.40-B-27
QS100 150 x 100 x 50 178 x 162 x 74 20 / 1740 126 / 239 120 x 80 x 177 no 1.50-B-22
QS300 200 x 140 x 50 228 x 202 x 74 20 / 1160 188 / 239 120 x 93 x 177 yes 1.50-B-22
QS400 256 x 154 x54 284 x 216 x 78 20 / 1240 178 / 241 120 x 96 x 176 yes 1.40-B-27
QS500 310 x 180 x 35 338 x 242 x 59 20 / 580 246 / 162 120 x 80 x 177 no 1.50-B-22
We reserve the right to make technical changes in case of product improvements.
