  • patented folding technique
  • sealed quickly using the self-adhesive closure

Show 3 pictures

Show 3 pictures

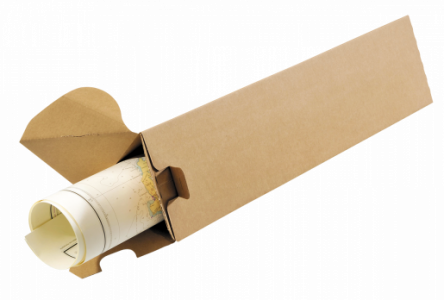

TRIPAC

extremly strong due to the triangular shape

General information:

  • delivered flat
  • semi-automatic base with self-adhesive closure
  • lid with tuck-in flap
  • 70 % space saving when stored
  • contains no composite materials such as a plastic lid or metal staples
  • very strong thanks to its triangular shape
  • Tripac is assembled in seconds thanks to pre gluing


Technical product information:

Item no. Max. usable size in mm External dimensions in mm Bundle / Pal. Pce. gr / Pal. kg Pallet size in cm overbuilt Quality
TP1 310 x 60 321 x 110 x 95 20 / 1680 69 / 137 120 x 80 x 123 no 1.30-E-22
TP2 430 x 60 441 x 110 x 95 20 / 1300 84 / 129 120 x 80 x 180 no 1.30-E-22
TP3 430 x 80 441 x 144 x 125 20 / 1020 120 / 142 120 x 80 x 180 no 1.30-E-22
TP4 610 x 80 621 x 144 x 125 20 / 800 159 / 147 120 x 80 x 180 no 1.30-E-22
TP5 700 x 70 711 x 127 x 110 20 / 840 155 / 150 120 x 80 x 180 no 1.30-E-22
TP6 860 x 80 871 x 144 x 125 20 / 640 215 / 157 120 x 80 x 123 no 1.30-E-22
We reserve the right to make technical changes in case of product improvements.
